TIR Lens vs. Reflector: Which Is Better for Off-Road LED Lighting?
When choosing an off-road LED light, most people look first at lumens and watts. But from an automotive lighting engineering perspective, those numbers tell only part of the story.
A powerful LED can generate thousands of lumens, but if the optical system cannot properly collect and direct that light, much of the output may not contribute to useful visibility.
This is where optical design becomes critical.
Two of the most common optical systems used in automotive LED lighting are TIR (Total Internal Reflection) lensesand traditional reflectors.
Both can produce excellent results when properly engineered. However, TIR optics provide some important advantages when precise beam control, high intensity, compact dimensions, and reduced stray light are required.
What Is a TIR Lens?
TIR stands for Total Internal Reflection.
A TIR lens is positioned directly over the LED and uses a combination of refraction and internal reflection to collect and redirect light.
The central portion of the optic typically controls forward-emitted light through refraction, while the outer geometry captures light emitted at wider angles and redirects it using total internal reflection.
The objective is simple:
Collect the LED’s available light and direct it exactly where it is needed.
This makes TIR optics particularly useful in high-performance off-road lighting, where beam distribution can be just as important as total lumen output.
How Does a Traditional LED Reflector Work?
A reflector uses a reflective surface surrounding the LED to redirect light forward.
Reflector technology is proven and can produce excellent results. Large, properly designed reflectors are capable of generating powerful driving and spot beams.
However, there is an important optical difference.
A reflector primarily controls the light that actually reaches its reflective surface. Because LEDs already emit a significant amount of light forward, some rays can leave the optical system without interacting with the reflector.
A TIR optic can capture and control a larger portion of the LED’s emission.
This gives the lighting engineer greater control over the final beam pattern.
TIR Lens vs. Reflector: The Key Difference
The fundamental advantage of TIR optics is beam control.
A reflector redirects the rays that strike its reflective surfaces. A TIR optic can manipulate both central and wide-angle LED emission.
That increased control allows engineers to create very specific beam distributions while keeping the optical system relatively compact.
| Feature | TIR Optics | Traditional Reflector |
|---|---|---|
| Beam control | Excellent | Good |
| Spill-light control | Excellent | Geometry dependent |
| Compact design | Excellent | Often requires more depth |
| Beam customization | Highly flexible | Flexible |
| Tight spot capability | Excellent | Excellent with proper sizing |
| Complex beam patterns | Excellent | More challenging |
This does not mean that every TIR light automatically performs better than every reflector light.
The final performance depends on the entire system: LED emitter, optical geometry, materials, alignment, thermal management, housing design, and manufacturing tolerances.

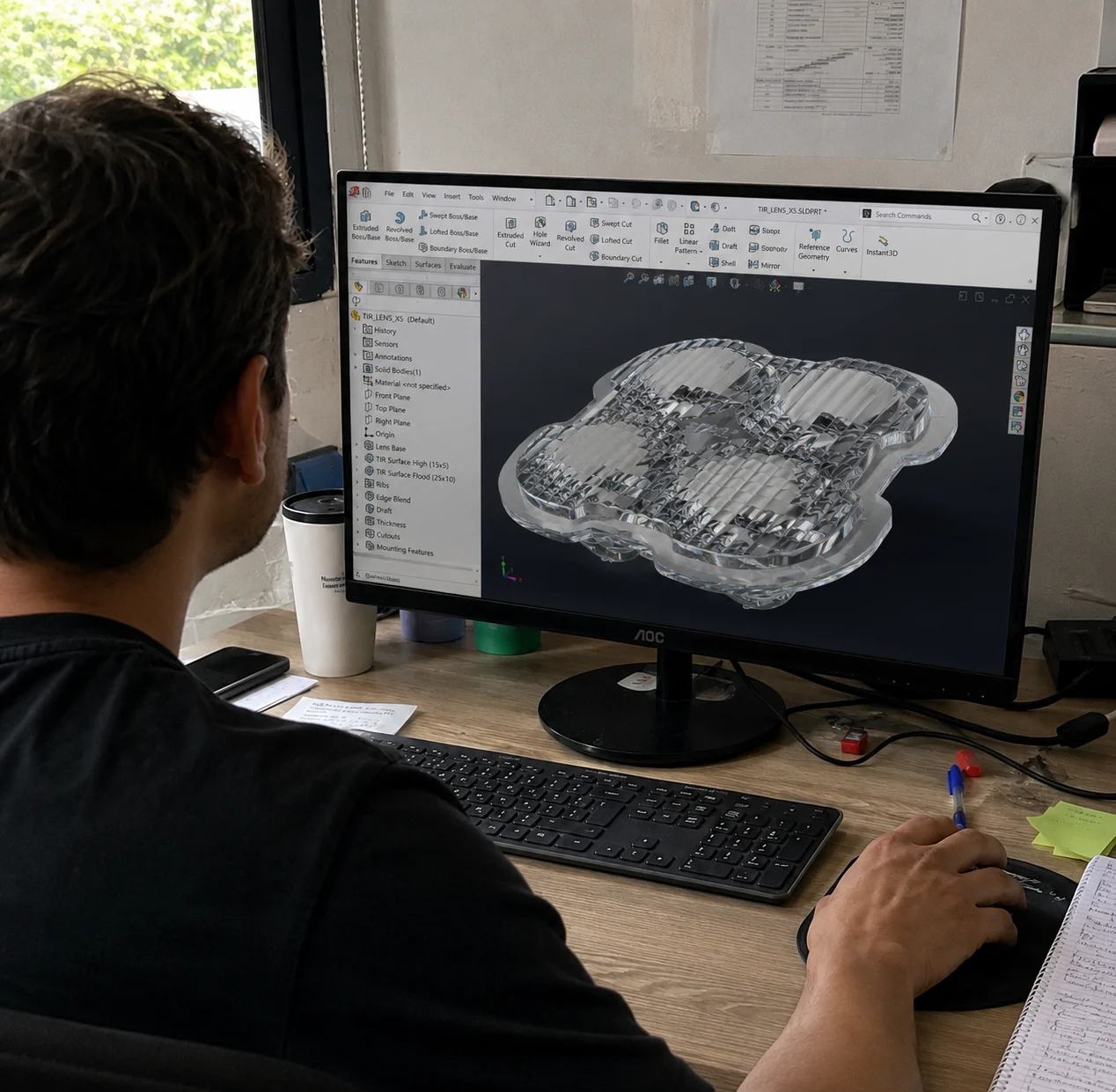

TIR Lens
1. More Precise Beam Control
One of the biggest advantages of TIR optics in off-road lighting is the ability to determine precisely where the light goes.
An off-road driver needs long-range visibility to identify obstacles ahead, but also enough peripheral illumination to understand the surrounding terrain.
Simply producing more lumens does not guarantee either.
TIR optics can be engineered to create different distributions, including:
- Spot
- Driving
- Flood
- Wide driving
- Elliptical
- Asymmetric
- Combination beams
This allows engineers to design the beam around the driving application instead of simply projecting as much light as possible.
2. Better Control of Spill Light
In automotive lighting, more light is not necessarily better. More useful light is better.
Light projected far outside the driver’s useful field of view still contributes to the total lumen measurement, but it may provide little practical visibility.
Uncontrolled light can also illuminate dust, fog, rain, vegetation, or nearby surfaces, producing reflections that can interfere with the driver’s vision.
A properly designed TIR optic can provide tighter control over these unwanted rays and direct more of the available output toward the intended illumination area.
This is one reason two LED lights with similar lumen ratings can perform very differently on the trail.
3. High Candela Without Simply Adding More Power
For long-range driving lights, candela is extremely important.
Lumens measure total luminous flux, while candela measures luminous intensity in a particular direction.
If an optical system concentrates more of the available light into the desired area, it can generate greater intensity without simply increasing LED power.
This is why wattage and lumen specifications alone should never be used to predict beam distance.
The optical system surrounding the LED plays a major role in determining how much usable intensity reaches the road.
4. Compact Size and High Optical Performance
Creating a controlled beam with a reflector requires careful consideration of reflector diameter, depth, LED position, and focal geometry.
TIR optics can achieve sophisticated beam distributions in relatively compact packages because the optic sits close to the LED and controls the light internally.
This is particularly valuable in modern off-road lighting, where powerful lights must fit into locations such as bumpers, grilles, A-pillars, fog-light openings, UTV bodywork, and compact auxiliary-light mounts.
5. Combining Distance and Width
TIR technology is not limited to narrow spot beams.
Modern optics can create complex distributions designed around specific driving requirements.
This approach is used in the Sigma X5 optical system.
The replaceable Optical TIR Lens for Sigma X5® uses optical-grade, UV-resistant polycarbonate and combines two different optical distributions:
15×5° High Driving Beam — designed to concentrate light forward for long-range visibility.
25×10° Flood Beam — designed to provide wider peripheral illumination.
Instead of forcing one beam pattern to perform two different jobs, the optical system combines dedicated distributions to balance distance and coverage.
This is especially useful in off-road driving, where the driver needs to see both far ahead and around the vehicle’s path.
Why Lumens Alone Don’t Determine Performance
Imagine two LED lights producing the same number of lumens.
One distributes a significant amount of light into areas that provide little useful visibility.
The other uses a carefully engineered optical system to concentrate more of those lumens into the road and surrounding terrain.
Both lights could advertise identical lumen figures while delivering very different real-world performance.
This is why professional lighting evaluation should consider:
Lumens — total amount of visible light produced.
Candela — intensity of light in a particular direction.
Lux — illumination reaching a surface at a specific distance.
Beam pattern — where the light is actually distributed.
Together, these measurements provide a much better understanding of an off-road light’s actual performance.
Are Reflectors Obsolete?
Absolutely not.
Properly engineered reflectors can deliver excellent performance and remain a proven solution for automotive lighting.
The engineering question should not simply be:
“Is TIR better than a reflector?”
Instead, we should ask:
“Which optical system provides the best control of the LED output for this application?”
For many modern auxiliary lights requiring compact dimensions, precise driving beams, controlled peripheral illumination, or combination patterns, TIR optics provide significant engineering advantages.
Final Thoughts
The next generation of high-performance off-road lighting will not be defined simply by who advertises the highest lumen number.
It will increasingly be defined by how effectively those lumens are controlled.
When evaluating an LED light, look beyond watts and lumens. Consider candela, lux at distance, beam distribution, and optical design.
Because in automotive lighting engineering, the objective is not simply to produce more light.
The objective is to put the right amount of light in the right place.
Frequently Asked Questions
What is a TIR lens in LED lighting?
A TIR (Total Internal Reflection) lens is an optical component that uses refraction and internal reflection to collect and control light emitted by an LED. It can be engineered to produce specific beam patterns such as spot, driving, flood, or combination beams.
Are TIR lenses better than reflectors for off-road lights?
TIR optics generally provide greater control over LED emission, especially when a compact and precisely defined beam is required. However, a properly engineered reflector can also deliver excellent performance. The quality of the complete optical system is more important than the technology alone.
Do TIR lenses produce more lumens?
No. A TIR lens does not create lumens—the LED produces the luminous flux. The purpose of the optic is to control where that light goes. Better optical control can result in more useful illumination reaching the road or trail without increasing LED power.
Why are TIR lenses good for off-road driving?
TIR optics can combine long-range intensity with controlled peripheral illumination. This allows lighting engineers to create beam patterns specifically designed for the combination of distance and width required during off-road driving.
What is the difference between lumens and candela?
Lumens measure the total amount of visible light produced, while candela measures how intensely that light is projected in a particular direction. For long-range off-road lighting, both values are important, but candela provides more information about beam intensity and potential distance.
What type of TIR lens does the Sigma X5 use?
The Sigma X5 uses an optical-grade polycarbonate TIR system with a combination beam. Its replaceable optic combines a 15×5° High Driving beam for long-range intensity with a 25×10° Flood beam for wider peripheral illumination.
The Sigma X5 Optical TIR Lens is available separately and can be replaced without changing the complete lamp.
